Gas Cylinder Level Sensor

Gas Cylinder Level Sensor is a device for measuring the residual liquid level of the gas cylinder propane bottle.

Gas Cylinder Level Sensor is a non-invasive level sensor. Instead of drilling holes into the gas cylinder, you can easily measure the remaining level height or volume by attaching the sensor to the bottom of the gas cylinder via a magnet.

  • It can be connected with the mobile phone through Bluetooth to check the remaining liquid level in the gas cylinder with APP or LED light.

  • Non-invasive measurement. It truly realizes external Non-contact level measurement.

  • Suitable for various types of steel and aluminum LPG gas cylinders and composite gas cylinders.

  • Quickly and precisely measures the gas level in kilograms and per cent.

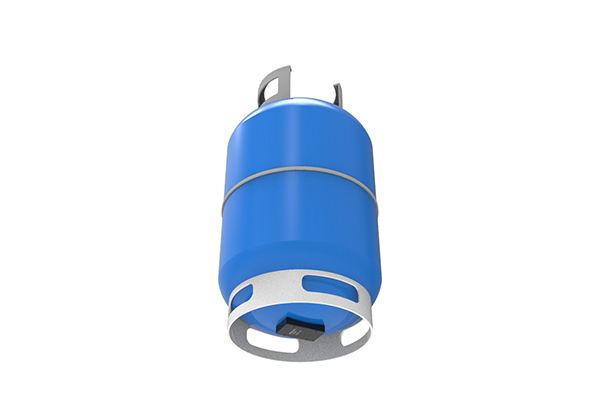

  • The sensor is attached to the bottom of the gas cylinder by magnets.

Send My Inquiry Now
app-store
google-play

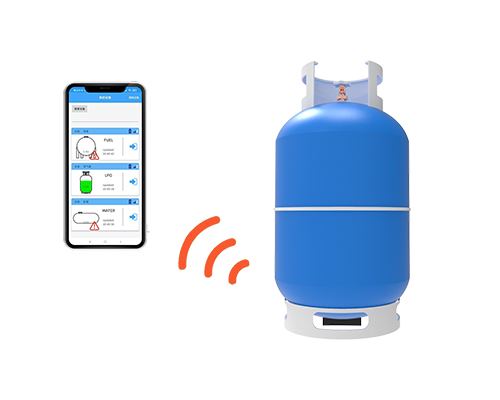

  • TNK-GCI02 Integrated Type Gas Cylinder Level Sensor

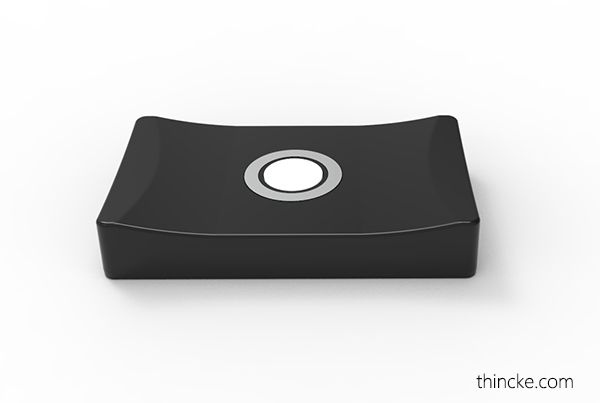

  • Gas Cylinder Level Sensor

We have designed two types of Level Sensor suitable for Gas Cylinder with different customer needs:

TNK-GCi03

Integrated Type Gas Cylinder Level Sensor

Gas Cylinder Level Sensor
Gas Cylinder Level Sensor

Gas Cylinder Level Sensor solves the problem of how to measure the remaining liquid level in a Propane Bottle.

  • In less than 5 seconds, you can figure out the tank’s liquid level or the remaining volume.
  • It can connect to your phone via Bluetooth.
  • Automatic alarm for liquid level. When the gas in the propane bottle is nearly used up, the gas cylinder level sensor will automatically alarm.
  • It can also upload liquid level information to the Internet. Convenient management of LPG operators, increase user stickiness.

Gas Cylinder Level Sensor feature

Non-invasive Level Measurement / External level measurement

Ultra-low power consumption

1*CR2032 battery, safe to use.

External installation

It will not affect the normal use of the gas cylinder.

Measurement precision

Quickly and precisely measures the gas level in kilograms and percent.

Easy to install and disassemble

It uses magnets to attach sensor to the bottom of the gas cylinder.

Application of Gas Cylinder Level Sensor

Gas Cylinder Level Sensor can be applied to the following gas cylinders: 5kg, 10kg, 15kg, and 50kg.

48kg Gas Cylinder

How to install Gas Cylinder Level Sensor

Gas Cylinder Level Sensor(TNK-GCi03)

  • Clean the bottom of the gas cylinder to ensure there are no impurities and keep the surface flat.
  • The sensor is attached to the bottom of the gas cylinder.
  • Turn on the switch to start the operation, you can choose to connect the phone through Bluetooth.

Technical Specifications

Gas Cylinder Level Sensor Specifications  Data
Max Measuring range 1.5m
Measuring error ±1%FS
Communication Bluetooth with Mobile phone App
Signal output Mobile phone App
Power supply 3V DC 2032 battery*1
Battery life 1-2 years
Size of mainframe 90mm*50mm*5.5mm

Product Documentation

Product Brief of Gas Cylinder Level Sensor

Download

Product Manual of Gas Cylinder Level Sensor

Download

How to upload your Gas Cylinder Level Information to the Internet

The Remote Terminal Unit for Gas Cylinder is an advanced wireless transmission Gateway (WIFI+Bluetooth Gateway). It connects with the Gas Cylinder Level Sensor through Bluetooth and transmits the liquid level data to the Internet through WIFI.

Cylinder Level Remote Monitoring
Read More
WIFI+Bluetooth Gateway
Read More
