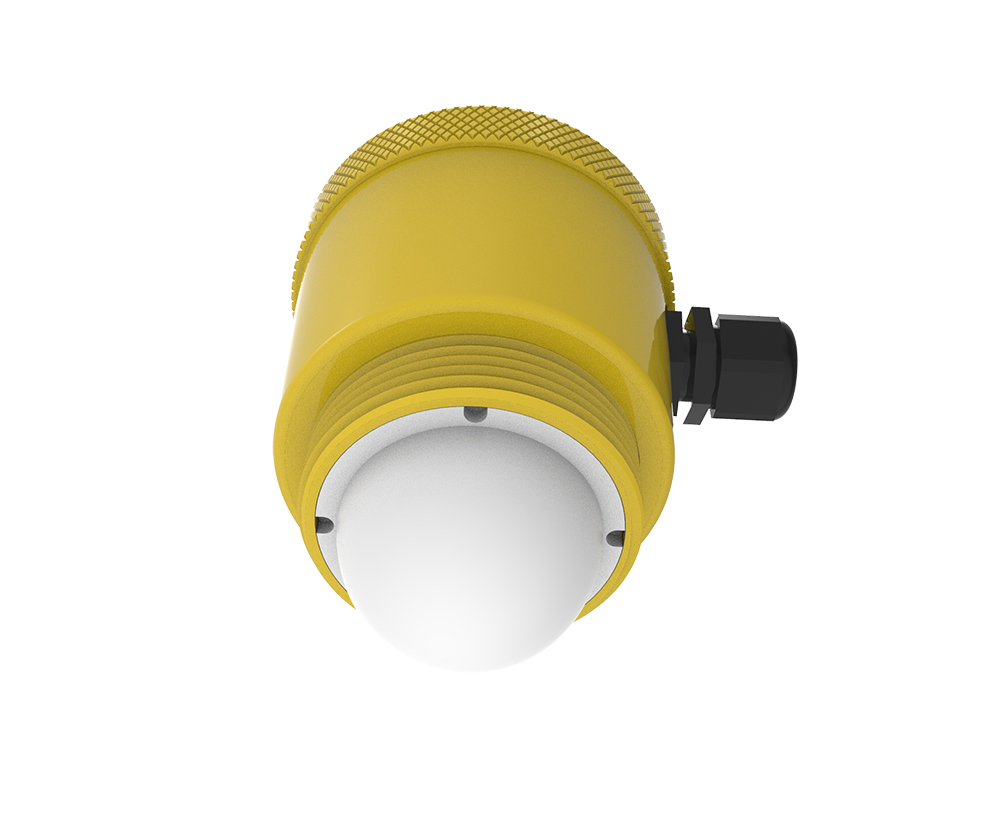

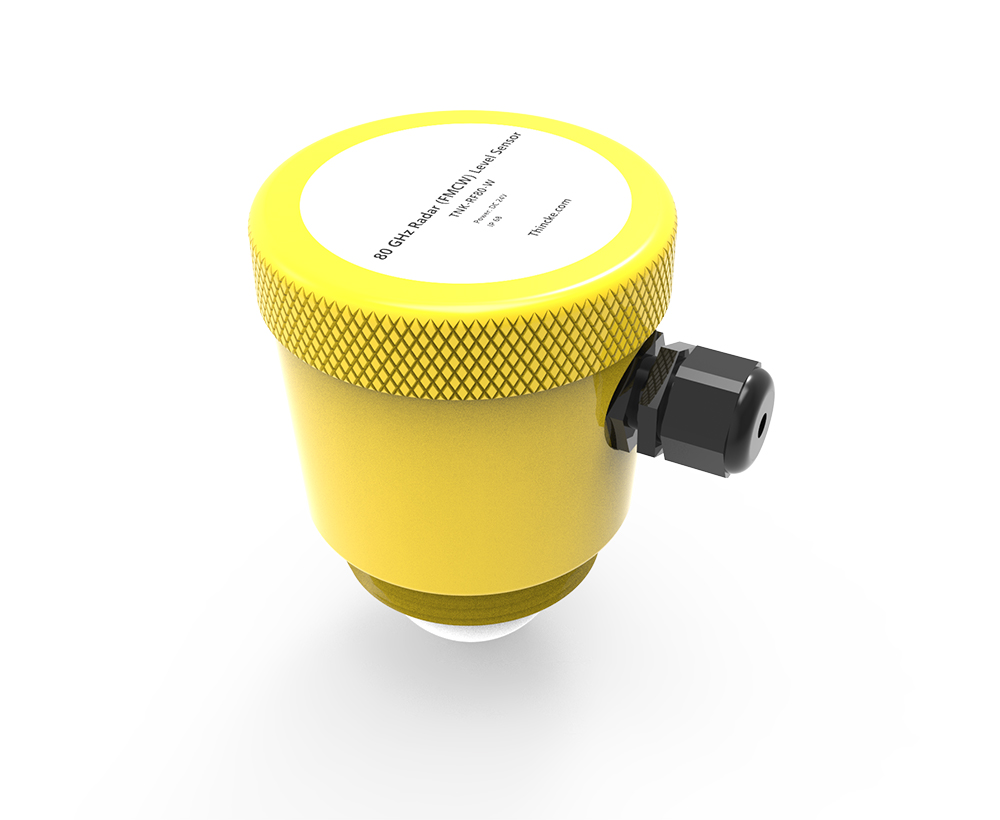

80GHz Radar (FMCW) Water Level Sensor

80GHz Radar (FMCW) Water Level Sensor is 80 GHz Radar, based on FMCW technology, for continuous, non-contact level measurement of liquids.

  • Continuous, non-contact level measurement, pumping stations, open channels etc..
  • 80 GHz Radar.
  • Measuring range: 0-20 m / 66 ft.
  • Bluetooth, Quickly set the parameters and view the data through APP.
  • Suitable for liquid storage tank, Online River Water Level Monitoring.
Send My Inquiry Now

Wireless 80GHz Radar (FMCW) Water Level Sensor for Selection

Model: TNK-R80W

Radar (FMCW) Water Level Sensor is ultra-low power design, so it can be freely combined with GPRS and help customers save on cabling costs.
It has the following options to meet your communication needs:

  1. Bluetooth
  2. 4-20mA
  3. RS-485
  4. GPRS/NB IoT

80GHz Radar (FMCW) Water Level Sensor Applications

How to install and How to debug Radar (FMCW) Water Level Sensor

You only need a mobile phone and some basic tools to install and debug the Radar (FMCW) Water Level Sensor.


Technical Specifications

TNK-R80W is a 2-wire 80GHz radar sensor suitable for water, wastewater, and other liquids.

As it is a millimeter wave radar, it can operate normally in extremely harsh environments such as high dust and rainy days. In addition, it is also suitable for non-contact and continuous measurement of  storage tanks, tank truck, rivers,lakes, wastewater, sludge and other liquids.

  • DC 24 V
  • 2-wire, loop-powered
  • FMCW technology
  • 80 GHz Radar
  • Proven PP Drop antenna, insensitive to condensation or deposits
  • Narrow beam angle (3°) for a sharp focus on the medium
  • ±2 mm / ±0.08" accuracy
  • Maintenance-free concept
  • Installation and operation made simple, safe and secure
  • Extensive choice of accessories
  • 3-year warranty
Product name Radar (FMCW) Water Level Sensor
Product model TNK-R80W
Radar operating frequency 76-81 GHz
Measuring range (liquids) 0…20 m/0…66 ft
Mode of connection 2-wire
Level measurement type Continuous measurement
Product positioning For liquids in the water and wastewater industry
Measurement variables Distance, Level, Mass, Reflection, Volume
Measurement principle Radar
Ambient temperature -40…+80°C/-40…+176°F
Communication 4-20mA, RS-485, Bluetooth, GPRS, NB-IoT
Accuracy (liquids) ±2 mm/±0.08 in
Protection grade IP 68
